Tsev - Cov khoom - Board To Boad Connectors - Paub meej

{{0}}.4mm Pitch Poj Niam Connector Mating Qhov siab 1.0mm BB0.4F

0.4mm Pitch Female Connector Mating Height 1.0mm BB0.4F-0.8XXX02
0.4mm Pitch Female Connector Mating Height 1.0mm BB0.4F-0.8XXX02
0.4mm Pitch Female Connector Mating Height 1.0mm BB0.4F-0.8XXX02

{{0}}.4mm Pitch Poj Niam Connector Mating Qhov siab 1.0mm BB0.4F

Kev Them Nyiaj: T / T, Paypal, L / C, Western UnionIncoterm: FOB, CIF, EXWMin. Order: 1000 Piece / Pieces Kev Thauj Mus Los: Dej hiav txwv, Cua, Express

Xa kev nug

Hauj lwm lawm

Product Description

Product AttributesSupply Ability Cov Ntaub Ntawv Ntxiv Ntim Kev Xa Khoom<>

Txheej txheem cej luam

Yam khoom

Qauv No.: BB0.4F-0.8XXX02Brand: ANTENK qhov chaw ntawm lub hauv paus chiv keeb: Tuam TshojInterface hom: Ac/DcHousing: PlasticPin: BrassPoles: Lwm yam Daim ntawv thov: Lwm yamCertification: OtherGender: FemaleMaterial: BrassSupport Card Number: Lwm yam kev khiav hauj lwm zaus: High FrequencyClassification: Lwm yam

Muaj peev xwm muab cov ntaub ntawv ntxiv

Ntim: hnab packing, Tube packing, reel packingProductivity: 2000K / hli Kev thauj mus los: Dej hiav txwv, Cua, ExpressPlace ntawm lub hauv paus chiv keeb: Tuam TshojSupply muaj peev xwm: 2000K / hliCertificate: ISO9001HS Code: 8536909000Type: FCI, UnionPayment: TSO , FCA

Ntim Kev xa khoom

Kev Muag Khoom:

Daim / Daim

Hom pob:

hnab packing, Tube packing, reel packing

0.4mm Pitch Board rau Board Poj Niam connector SMT Hom

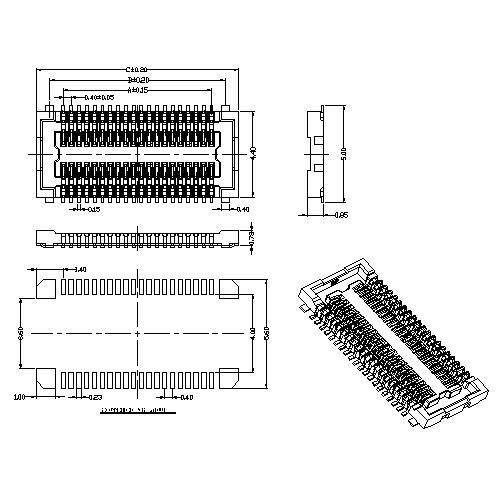

0.4mm Board to Board connector,Female,mating Height 1.0mm BB0.4F-1.0XXX02

Specifications:

1.Materlal:

1-1.Moulded feem: LCP resin (ul94-0).

1-2.Kev sib cuag thiab ncej: tooj liab alloy.

2. Kev kho deg:

2-1.Terminal feem; puag; Ni plating nto;

Au plating (tshwj tsis yog cov lus qhia davhlau ya nyob twg); nthuav tawm cov nickel feem.

2-2.Metal Clips: puag; Ni plating nto; Au flash plating

(tshwj tsis yog cov lus qhia davhlau ya nyob twg) lossis lub hauv paus; Ni plating nto;

Sn flash plating (tshwj tsis yog cov lus qhia davhlau ya nyob twg)

3. Yam ntxwv:

3-1.Rated voltage: 60V AC / DC

3-2.Rated curren:0.3A/contact(Max.5A ntawm tag nrho kev sib cuag)

3.3.Insulation resistance:Min.1000MΩ(initial)

3.4.Breakdown voltage: 150V AC fou 1 min.

3-5.Saltwater spray kuj (header thiab socket mated: 24 teev,

insulact resistance max.90mΩ.

3-6Contact resistance:Max.90mΩ.

3-7.Ambient kub: -55 degree ntxiv rau 85 degree.

3-8.Storage kub: -55 degree ntxiv rau 88 degree (khoom xwb);

-40 degree ntxiv rau 50 degree (emboss ntim).

3-9.Composite insertion force:Max.0.918N/contacts X contacts(initial).

3-10.Composite tshem tawm quab yuam:Min.0.165N/hu rau X hu.

3-11.Post tuav quab yuam:Min.0.49N/contacts.

3-12.Insertion thiab tshem tawm lub neej: 50 zaug

Q: What's is your shipping service?

A: Peb tuaj yeem muab cov kev pabcuam rau kev booking nkoj, khoom sib sau ua ke, kev tshaj tawm kev lis kev cai, kev npaj cov ntaub ntawv thauj khoom thiab xa khoom ntau ntawm qhov chaw nres nkoj shipping.

Q: Koj puas tuaj yeem muab kev pabcuam FBA?

A: Yes, we have the good experience in providing the professional FBA service.

Q: What's your tem of the delivery?
A: Our ordinary delivery term is FOB Xiamen. We also accept EXW, CFR, CIF, DDP, DDU etc. We'll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.

Q: Txoj kev shipping twg koj tuaj yeem muab tau?

A: Peb tuaj yeem muab kev xa khoom los ntawm hiav txwv, los ntawm huab cua thiab los ntawm kev nthuav qhia.

Q: What's your after-sale service?

A: Our quality warranty period is one year. Any quality problem will be solved to customer satisfactions.

BB0.4F-1.5XXX01
