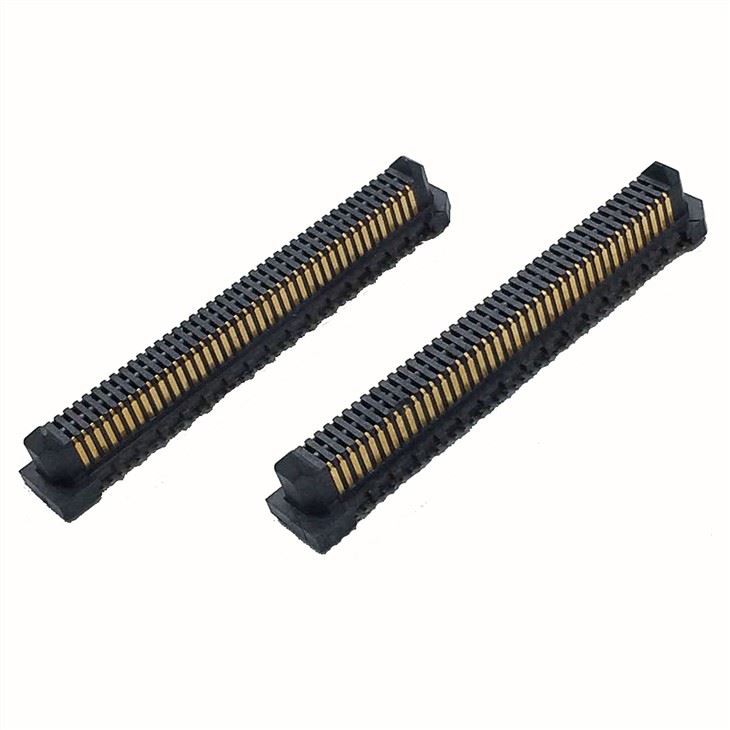

{{0}}.5mm Board To Board Connector Poj Niam Ib Leeg Groove BB0.8M-H

Yam khoom

Qauv No.: BB0.5F-XXXXX03 Hom: ANTENKInterface Hom: AC/DCHousing: PlasticPin: BrassPoles: Lwm Daim Ntawv Thov: Lwm Cov Ntawv Pov Thawj: Lwm Tus Poj Niam: Poj Niam Cov Khoom Siv: BrassSupport Card Number: OtherOperating Frequency: High FrequencyClassification:

Muaj peev xwm muab cov ntaub ntawv ntxiv

Ntim: hnab ntim, Tube packing, reel packingProductivity: 10000K / hli Kev Thauj Mus Los: Dej hiav txwv, Cua Chaw Keeb Kwm: Tuam Tshoj Muaj Peev Xwm: 10000K / hli Daim ntawv pov thawj: ISO9001HS Code: 8536909000Type FOB EXPayment: T/hnub

Ntim Kev xa khoom

Kev Muag Khoom:

Hnab / Hnab

Hom pob:

hnab packing, Tube packing, reel packing

Shenzhen Antenk Electronics Co., Ltd. txhawb nqa ib qho {{{0}}}.5mm Board rau board connector, Poj niam, ib zawj, mating qhov siab =1.52.0mm connector.

Terminal connector dav siv ceev faj

1. The purpose of producing the "terminal connector" is to turn on electrical and electrical signals, so do not use it for a part of a member or a member premised on the application of mechanical force to the joint (contact portion) of the "terminal connector".

2. "Terminal connector" is divided into two types: wiring for wiring in the device and wiring between devices. The "terminal connector" for wiring in the device can only be used for the "internal body of the device" specified in the Electrical Appliances Safety Law. Wiring, please handle it properly on the equipment side to avoid contact with the general public.

Product Information:

1.Series TSIS MUAJ: 0.5mm Board rau Board connecter

2.mating Qhov siab:

H{{0}}.5mm/2.0mm/2.5mm.

3. Ntim

T: Tube A: Tais

B: Hnab U: Tube plus CAP

R: daim kab xev

W:tapeReel plus CAP

Hluav taws xob

Kev ntsuas tam sim no: 0.5A

Kev ntsuas hluav taws xob: 50V AC / DC

Tiv tauj Resistance: 50milliohm Max

Rwb thaiv tsev Resistance: 100Megohm Min

Ua haujlwm kub: -20 degree rau ntxiv 105 degree

Khoom siv tsev: PA9T ntxiv rau 30 feem pua ​​GF (UL94V-0)

Khoom siv: Phosphor Btonze

Hu rau plating: Au los yog Sn tshaj Ni

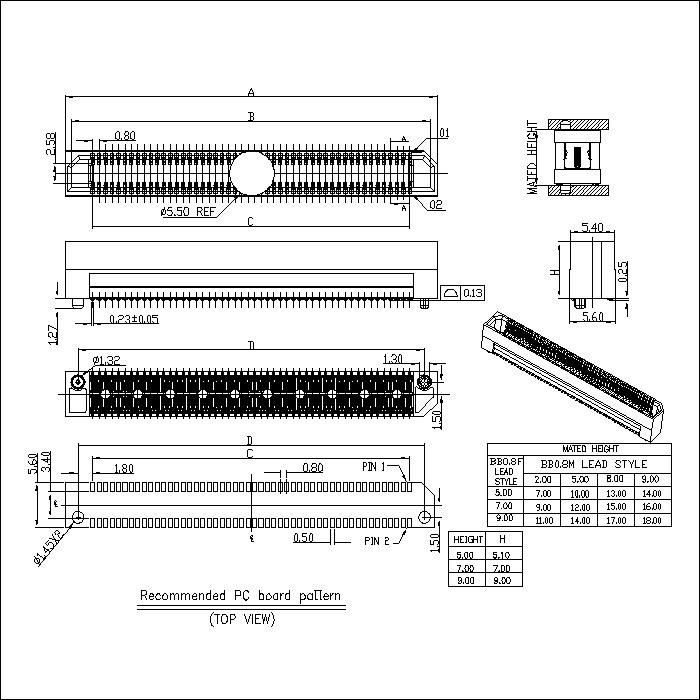

BB0.8M-HXXX03

Specification yam

1 Kev ntsuas tam sim no: 1.0A AC/DC

2 Kev ntsuas hluav taws xob: 300V AC / DC

3 Kev Ua Haujlwm Kub: -55 ° C rau 125 ° C

4.Operating Humidity: 90 feem pua ​​​​rau 95 feem pua

5.Qhov Voltage: 500VAC

Q: Koj puas tuaj yeem ua peb tus kheej ntim khoom?

A: Yog, koj tsuas yog muab lub pob tsim thiab peb yuav tsim qhov koj xav tau. Peb kuj muaj tus kws tshaj lij tsim qauv tuaj yeem pab koj ua tus tsim ntim.

 Q: Muaj pes tsawg hom khoom koj lub tuam txhab tsim?A: Tam sim no peb muaj ntau tshaj 1, 000 khoom. Peb muaj qhov zoo ntawm OEM, tsuas yog muab peb cov khoom tiag lossis koj lub tswv yim uas koj xav tau, peb yuav tsim khoom rau koj.

Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.

Q: What's your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation.

 Q: Koj lub sijhawm xa khoom ntev npaum li cas?A: Lub sijhawm xa khoom dav dav yog 30-45 hnub tom qab tau txais koj daim ntawv lees paub. Anther, yog tias peb muaj cov khoom hauv Tshuag, nws tsuas yog siv 1-2 hnub. Q: Koj puas muab cov qauv? Puas yog dawb?A: Yog tias tus qauv qis qis, peb yuav muab cov qauv dawb nrog cov khoom thauj. Tab sis rau qee qhov kev kuaj tus nqi siab, peb yuav tsum tau sau cov nqi coj mus kuaj.

BB0.8F-XXXX02
