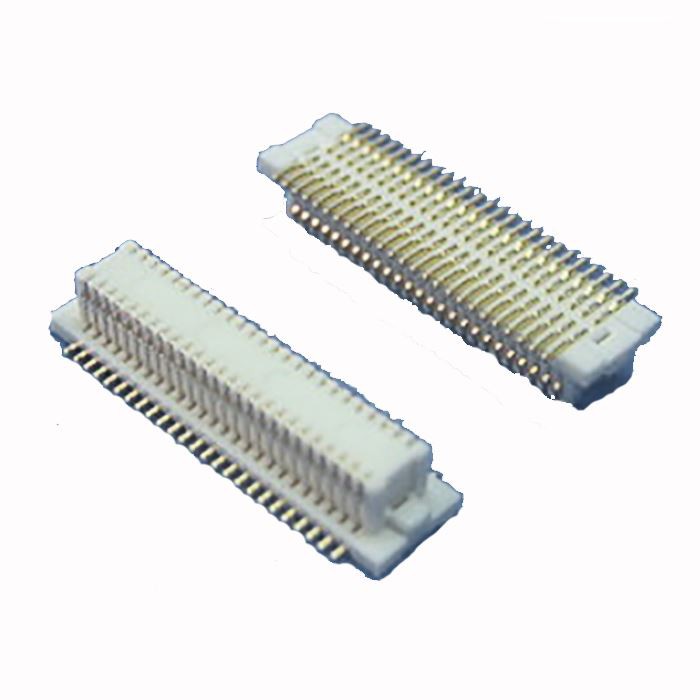

0.5mm BTB Connector Txiv neej Nrog Nrhiav Pegs Hom

kab ntxwv

Model No.: BB{{0}}.5BM-5.0XXXX02  Brand: ANTENKInterface Type: AC/DCHousing: PlasticPin: BrassPoles: OtherApplication: OtherCertification: OtherGender: MaleMaterial: BrassSupport Card Number: OtherOperating Frequency: High FrequencyClassification: Other

Muaj peev xwm muab cov ntaub ntawv ntxiv

Ntim: hnab ntim, Tube packing, reel packingProductivity: 10000K / hli Kev Thauj Mus Los: Dej hiav txwv, Cua Chaw Keeb Kwm: Tuam Tshoj Muaj Peev Xwm: 10000K / hli Daim ntawv pov thawj: ISO9001HS Code: 8536909000Type FOB EXPayment: T/hnub

Ntim Kev xa khoom

Kev Muag Khoom:

Hnab / Hnab

Hom pob:

hnab packing, Tube packing, reel packing

Shenzhen Antenk Electronics Co., Ltd. txhawb nqa {{0}}.5mm Board rau Board connector, Txiv neej nrog nrhiav pegs hom, mating Qhov siab =5.0mm connector.

1. Do not place the Terminal Connector" and the process in-process or processed products (harness, etc.) in an environment with corrosive substances, corrosive gases, high temperature and humidity, or direct sunlight. Otherwise, the terminal may be corroded or molded. Insulation performance aging, etc., resulting in poor equipment operation.

2. Do not apply external force to the terminal connector" or the process-in-process or processed product (Wire Harness, etc.), otherwise deformation and damage may occur, resulting in poor connector performance.

Product Information:

1.Series TSIS MUAJ: 0.5mm Board rau Board connecter

2.mating Qhov siab:

H{0}}.0mm

3. Ntim

T: Tube A: Tais

B: Hnab U: Tube plus CAP

R: daim kab xev

W:tapeReel plus CAP

Hluav taws xob

Kev ntsuas tam sim no: 0.5A

Kev ntsuas hluav taws xob: 50V AC / DC

Tiv tauj Resistance: 50milliohm Max

Rwb thaiv tsev Resistance: 100Megohm Min

Ua haujlwm kub: -20 degree rau ntxiv 105 degree

Khoom siv tsev: PA9T ntxiv rau 30 feem pua ​​GF (UL94V-0)

Khoom siv: Phosphor Btonze

Hu rau plating: Au los yog Sn tshaj Ni

Model No.: BB{{0}}.5BM-5.0XXXX02

Q: Koj puas tuaj yeem ua peb tus kheej ntim khoom?

A: Yog, koj tsuas yog muab lub pob tsim thiab peb yuav tsim qhov koj xav tau. Peb kuj muaj tus kws tshaj lij tsim qauv tuaj yeem pab koj ua tus tsim ntim.

 Q: Muaj pes tsawg hom khoom koj lub tuam txhab tsim?A: Tam sim no peb muaj ntau tshaj 1, 000 khoom. Peb muaj qhov zoo ntawm OEM, tsuas yog muab peb cov khoom tiag lossis koj lub tswv yim uas koj xav tau, peb yuav tsim khoom rau koj.

Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.

Q: What's your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation.

 Q: Koj lub sijhawm xa khoom ntev npaum li cas?A: Lub sijhawm xa khoom dav dav yog 30-45 hnub tom qab tau txais koj daim ntawv lees paub. Anther, yog tias peb muaj cov khoom hauv Tshuag, nws tsuas yog siv 1-2 hnub.
