2.54mm Box Header Ntxiv Tsev

Yam khoom

Qauv No .: BHDS05-XXXXX Hom: ANTENKInterface Hom: AC/DCHousing: PlasticPin: BrassPoles: Lwm Daim Ntawv Thov: Lwm Cov Ntawv Pov Thawj: Lwm Tus Poj Niam: Txiv Neej Cov Khoom Siv: BrassSupport Card Number: OtherOperating Frequency: High FrequencyClassification: Lwm yam

Muaj peev xwm muab khoom & Cov ntaub ntawv ntxiv

Ntim: hnab packing, Tube packing, reel packingProductivity: 100000K/hli Kev Thauj Khoom: Dej hiav txwv, Huab Cua Chaw Keeb Kwm: Tuam Tshoj Muaj Peev Xwm: 100000K / hliCertificate: ISO9001HS Code: 8536909000Type: FFC, UnionPayment, Kev them nyiaj:

Ntim & Xa

Kev Muag Khoom:

Hnab / Hnab

Hom pob:

hnab packing, Tube packing, reel packing

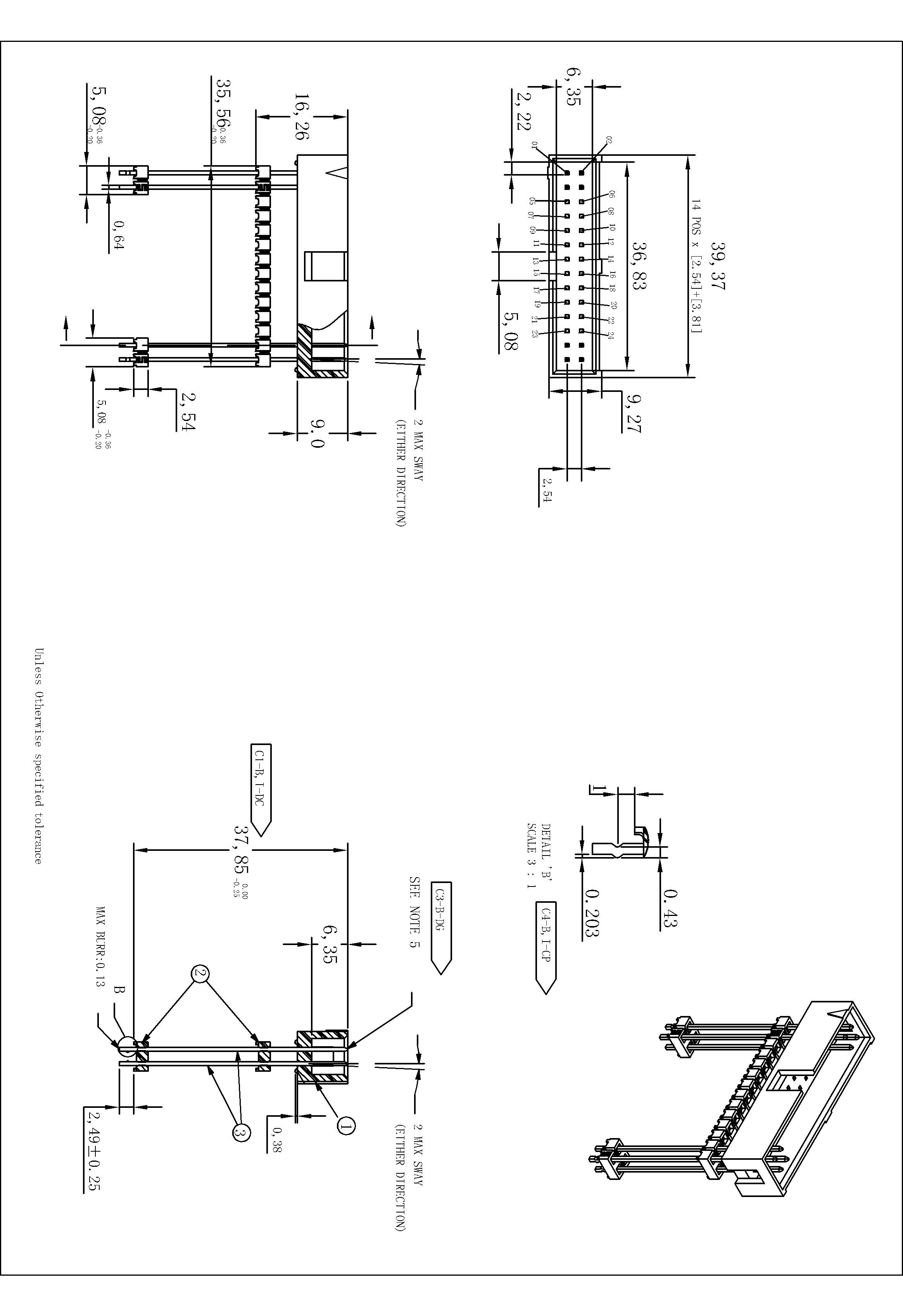

Shenzhen Antenk Electronics Co., Ltd. launched a 2.54mm Box Header 180 degree H=9.0 Ntxiv Housing Electronics

Nyob rau hauv lub neej yav tom ntej, Antenk yuav dhau los ua tus neeg koom tes nrog kev ntseeg siab tshaj plaws ntawm cov neeg siv khoom nrog lub ntsiab lus ntawm [Cov Neeg Siv Khoom Txaus Siab, Kev Sib Koom Sib Koom, Kev Txhim Kho Ntxiv", thiab nthuav dav kev lag luam txawv teb chaws nrog kev lag luam lub tswv yim ntawm kev muab cov kev pabcuam zoo tshaj plaws thiab ceev tshaj plaws. Cov neeg siv khoom network teeb tsa. nce kev lag luam cov ntsiab lus thoob ntiaj teb thiab dhau los ua lub tuam txhab thev naus laus zis thoob ntiaj teb

SPECIFICATION

Kev ntsuas tam sim no: 3.0Amp

Rwb thaiv tsev Resistance: 1000MΩ min

Tiv tauj Resistance: 20MΩ max

Tawm tswv yim Voltage: 500V AC / DC

Ua haujlwm kub: -40 degree rau ntxiv rau 105 degree

Khoom siv: tooj dag

Hu rau Plating: Au or Sn Over Ni

Insulator Khoom: PBT / PA6T ntxiv rau 30 feem pua ​​GF UL 94V-0

cov ntaub ntawv khoom:

1.No.of Contacts: 06P 08P 10P 14P 16P 20P 24P 26P 30P 32P 34P 40P 44P 50P 60P 64P 80P 100P

2.Connector Hom: Ob chav kab.

3.Plastic Siab: H=5.70mm.

4.Packing: Tais / Hnab / Tube / Tube ntxiv CAP / Daim kab xev & Reel / Daim kab xev & Reel ntxiv CAP.

SPECIFICATION

Kev ntsuas tam sim no: 1Amp

Rwb thaiv tsev Resistance: 1000MΩ min

Tiv tauj Resistance: 20MΩ max

Tawm tswv yim Voltage: 500V AC / DC

Ua haujlwm kub: -40 degree rau ntxiv rau 105 degree

Khoom siv: tooj dag

Hu rau Plating: Au or Sn Over Ni

Insulator Khoom: PA6T ntxiv rau 30 feem pua ​​GF UL 94V-0

Q: Koj lub sijhawm khoom xa tuaj yog dab tsi?
A: Peb lub sij hawm xa tuaj yog FOB Xiamen. Peb kuj lees txais EXW, CFR, CIF, DDP, DDU thiab lwm yam. Peb yuav muab cov nqi thauj khoom rau koj thiab koj tuaj yeem xaiv qhov uas yooj yim tshaj plaws rau koj.

Q: Koj qhov kev pab cuam tom qab muag yog dab tsi?

A: Peb lub sijhawm lav zoo yog ib xyoos. Txhua qhov teeb meem zoo yuav daws tau rau cov neeg siv khoom txaus siab.
