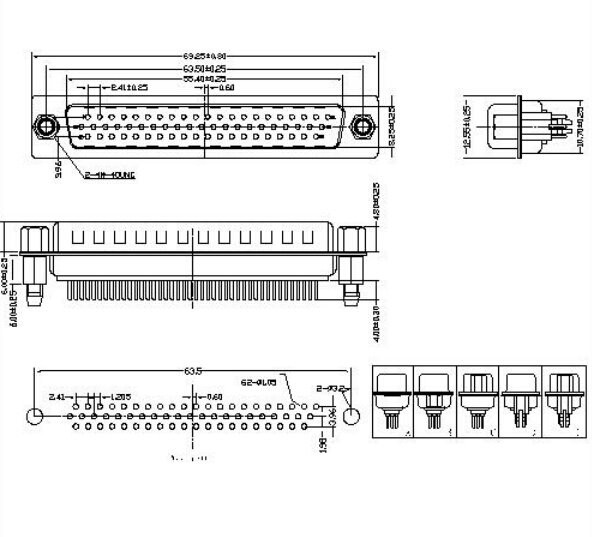

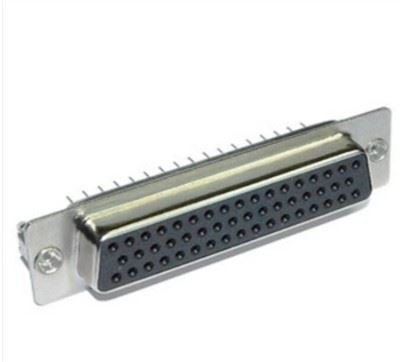

D-SUB 62P PCB Txiv neej Peb Kab Ncaj (stamped Pin)

Yam khoom

Qauv No.: HDP01-M62XXXX Hom: ANTENK qhov chaw ntawm lub hauv paus chiv keeb: Tuam TshojInterface hom: D-Sub(Vga) Lub tsev: PlasticPin: BrassPoles: 8-16Daim ntawv thov: Tub rog AviationCertification: CeGender: Poj niamMaterial: BrassSupport Card Number: Tag nrho hauv OneOperating zaus: High FrequencyClassification: Fine Pitch Connectors

Muaj peev xwm muab khoom & Cov ntaub ntawv ntxiv

Ntim: hnab packing, Tube packing, reel packingProductivity: 10000K/hli Kev thauj mus los: Dej hiav txwv, Cua, ExpressPlace ntawm lub hauv paus chiv keeb: ChinaSupply muaj peev xwm: 10000K/hliCertificate: ISO9001-2015HS Code: 8536909000Type: UnionPay,Types/pay : FOB, EXW

Ntim & Xa

Kev Muag Khoom:

Hnab / Hnab

Hom pob:

hnab packing, Tube packing, reel packing

Chaw tsim tshuaj paus: ANTENK ELECTRONICS., CO LTD.

ANTENK D-Sub connectors / contacts yog tsim nyob rau hauv plug los yog receptacle poj niam txiv neej nrog 50 Ohm impedance. D Sub hu muaj nyob rau hauv ncaj los yog lub kaum sab xis versions, nrog rau, mount-tsawg xaiv. Cov qauv D-Sub no suav nrog crimp / solder, solder lossis solder / solder txuas txoj kev.

Khoom siv:

Housing: Kub Thermoplastics, PBT ntxiv rau GF UL 94V-0

Hu rau: tooj dag lossis tooj dag

Plhaub: 0.35T Hlau Nickel Plating Txhua Cheeb Tsam

Cov yam ntxwv hluav taws xob:

Kev ntsuas tam sim no: 5A

Tiv tauj Resistance: 20 Milliohms Max

Withstanding Voltage: 500V AC Rau 1 feeb

Rwb thaiv tsev Resistance: 1000 Mehms Min

Ua haujlwm kub: -55 degree rau ntxiv rau 105 degree

Peb Qhov Kev Pabcuam

1.Ntau tshaj kev pabcuam hauvNtim thiab luam ntawv cov khoomexporting teb

2.Kev tsim khoom muaj peev xwm zoo dua

3. Ntau lub sijhawm them nyiaj xaiv: T / T, Western Union, L / C, Paypal
4.High zoo / khoom siv ruaj ntseg / tus nqi sib tw
5.Kev txiav txim me me muaj
6. Teb ceev ceev

7.Ntau dua kev nyab xeeb thiab thauj ceev
8.OEM tsim rau txhua tus neeg siv khoom
