D-SUB High Density Poj Niam Tshuab Pin 9.4mm Footprint

Yam khoom

Qauv No.: MHDR02-FXXXX3 Hom: AntenkInterface Hom: D-Sub(Vga) Lub Tsev: PlasticPin: BrassPoles: Lwm Daim Ntawv Thov: Lwm Daim Ntawv Pov Thawj: CeGender: Poj Niam Cov Khoom: CopperSupport Card Number: OtherOperating Frequency: High FrequencyClassification: Wired Broadbanding : Tais

Muaj peev xwm muab khoom & Cov ntaub ntawv ntxiv

Ntim: cartonProductivity: 10000K / hli Kev Thauj Mus Los: Dej Hiav Txwv, Cua, ExpressPlace ntawm Keeb Kwm: ChinaSupply Muaj peev xwm: 10000K / hli Daim ntawv pov thawj: ISO 9001-2015HS Code: 8536909000 Kev Them Nyiaj Hom: L / C, Peb Lub Sijhawm FOB: UnionPay, CIF, EXW

Ntim & Xa

Kev Muag Khoom:

Daim / Daim

Hom pob:

thawv

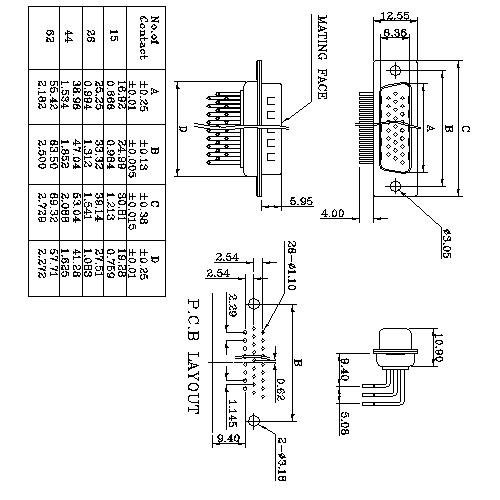

Khoom npe: MHDR02-FXXXX 3 D-SUB High Density Right-angle Poj Niam Tshuab Pin 9.4mm Ko Taw

No. ntawm kev xaiv hu:

1. 15 pin d-sub connector

2. 26 pin d-sub connector

3. 44 pin d-sub connector

4. 62 pin d-sub connector

Chaw tsim tshuaj paus: ANTENK ELECTRONICS., CO. LTD.

Peb cov kab tiav ntawm D-Subminiature Connectors ranges los ntawm txoj cai kaum thiab ntsug muab tso rau connectors, cable connectors rau Antenk D-sub connectors. Peb D-subminiature connector portfolio yog tsim los rau ntau daim ntawv thov nrog rau cov khoom siv tshwj xeeb uas yuav muab txhua tus neeg siv khoom nrog kev daws teeb meem d-sub rau txhua daim ntawv thov nyuaj. Antenk D-subminiature connectors yog tsim nyog rau MIL-DTL-24308 specification, muaj ntau yam kev sib cuag ntom ntom, nrog rau qhov hnyav-txuag thiab EMI shielding. Peb cov ntaub ntawv muaj xws li AS39029 kev sib cuag, nrog rau kev sib txuas lus thiab kev sib cuag fais fab.

Khoom Variations:

1. Txoj cai kaum PCB

2. Vertical PCB

3. Cable mounted

Specification:

Plhaub Cov khoom siv hlau, pem hauv ntej plhaub npib tsib xee tiav, rov qab plhaub nickel tiav

Insulator PBT Thermoplastic, 30 feem pua ​​iav ntim, UL94V-0 ntsuas, nrog xim

Tiv tauj cov ntaub ntawv tooj dag

Tiv tauj tag Tag nrho 2μ '' kub

Hu rau qhov ntsuas tam sim no 5A

Tiv tauj tiv thaiv 30 hli max.

Dielectric tiv thaiv voltage 1000V AC min.

Rwb thaiv tsev tsis kam 5000 megaohms min.

Qhov kub thiab txias -55 degree ~ ntxiv rau 105 degree

Peb Qhov Kev Pabcuam

1.Ntau tshaj kev pabcuam hauvNtim thiab luam ntawv cov khoomexporting teb

2.Kev tsim khoom muaj peev xwm zoo dua

3. Ntau lub sijhawm them nyiaj xaiv: T / T, Western Union, L / C, Paypal
4.High zoo / khoom siv ruaj ntseg / tus nqi sib tw
5.Kev txiav txim me me muaj
6. Teb ceev ceev

7.Ntau dua kev nyab xeeb thiab thauj ceev
8.OEM tsim rau txhua tus neeg siv khoom
