1.27mm Ncej Siab Profile Box Header

Yam khoom

Qauv No.: BHAM04-XXXXXXX Hom: ANTENK qhov chaw ntawm lub hauv paus chiv keeb: Tuam TshojInterface hom: Ac/DcHousing: PlasticPin: BrassPoles: Lwm yam Daim ntawv thov: Lwm yamCertification: Lwm yamGender: Txiv neejMaterial: BrassSupport Card Number: Lwm yam kev khiav hauj lwm zaus: High FrequencyClassification: Lwm yam

Muaj peev xwm muab khoom & Cov ntaub ntawv ntxiv

Ntim: hnab packing, Tube packing, reel packingProductivity: 2000K / hli Kev thauj mus los: Dej hiav txwv, Cua, ExpressPlace ntawm lub hauv paus chiv keeb: Tuam TshojSupply muaj peev xwm: 2000K / hliCertificate: ISO9001HS Code: 8536909000Type: FCI, UnionPayment: TSO

Ntim & Xa khoom

Kev Muag Khoom:

Daim / Daim

Hom pob:

hnab packing, Tube packing, reel packing

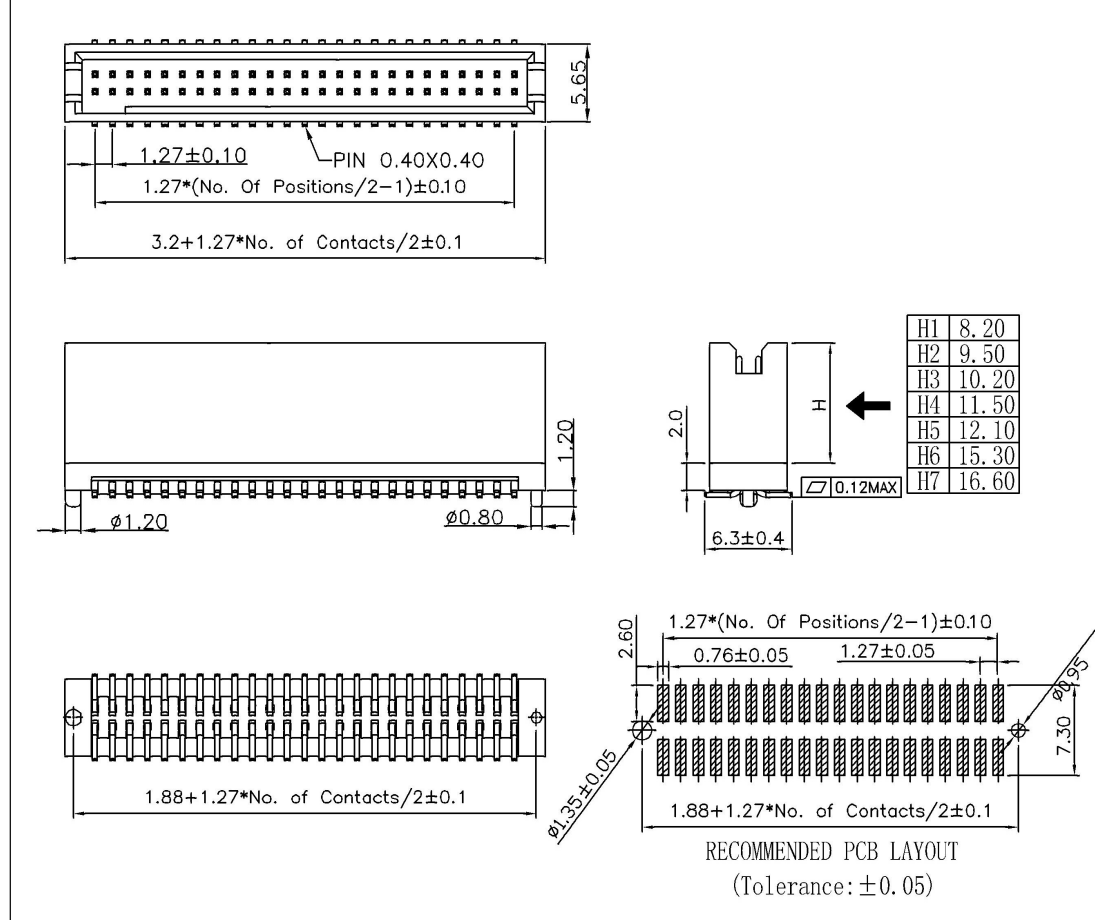

1.27mm suab Box Header SMT Nrog ncej, High Profile connector.

Specifications:

Kev ntsuas tam sim no: 1Amp

Rwb thaiv tsev Resistance: 1000MΩ min

Tiv tauj Resistance: 20MΩ max

Tawm tswv yim Voltage: 500V AC / DC

Ua haujlwm kub: -40 degree rau ntxiv rau 105 degree

Khoom siv: tooj dag

Hu rau Plating: Au or Sn Over Ni

Cov khoom siv hluav taws xob: PA6T ntxiv rau 30 feem pua ​​GF UL 94V-0

Q: Koj qhov kev pabcuam shipping yog dab tsi?

A: Peb tuaj yeem muab cov kev pabcuam rau kev booking nkoj, khoom sib sau ua ke, kev tshaj tawm kev lis kev cai, kev npaj cov ntaub ntawv thauj khoom thiab xa khoom ntau ntawm qhov chaw nres nkoj shipping.

Q: Koj puas tuaj yeem muab kev pabcuam FBA shipping?

A: Yog, peb muaj kev paub zoo hauv kev muab kev pabcuam FBA.

Q: Koj lub sijhawm khoom xa tuaj yog dab tsi?

A: Peb lub sij hawm xa tuaj yog FOB Xiamen. Peb kuj lees txais EXW, CFR, CIF, DDP, DDU thiab lwm yam. Peb yuav muab cov nqi thauj khoom rau koj thiab koj tuaj yeem xaiv qhov uas yooj yim tshaj plaws rau koj.

Q: Txoj kev shipping twg koj tuaj yeem muab tau?

A: Peb tuaj yeem muab kev xa khoom los ntawm hiav txwv, los ntawm huab cua thiab los ntawm kev nthuav qhia.

Q: Koj qhov kev pab cuam tom qab muag yog dab tsi?

A: Peb lub sijhawm lav zoo yog ib xyoos. Txhua qhov teeb meem zoo yuav daws tau rau cov neeg siv khoom txaus siab.
