0.8mm Poj niam Pin Header

Yam khoom

Qauv No.: FHAM01-XXD-XXXX

Hom Lub Npe: ANTENK

qhov chaw ntawm keeb kwm: Suav teb

Hom interface: Ac / Dc

Lub tsev: Yas

Pin: tooj

Ncej: Lwm yam

Daim ntawv thov: Lwm yam

Ntawv pov thawj: Lwm yam

Poj niam los txiv neej: Poj niam

Khoom siv: tooj dag

Kev them nyiaj yug daim npav naj npawb: Lwm yam

Kev khiav hauj lwm zaus: High zaus

Classification: Lwm yam

Muaj peev xwm muab khoom& Cov ntaub ntawv ntxiv

Ntim: hnab ntim, Tube packing, reel packing

Productivity: 10000K / hli

Kev thauj mus los: Dej hiav txwv, Huab cua

Qhov chaw ntawm Keeb Kwm: Suav teb

Muaj peev xwm muab khoom: 10000K / hli

Daim ntawv pov thawj: ISO9001

HS Code: 8536909000

Ntim& Kev xa khoom

Kev Muag Khoom:

Hnab / Hnab

Hom pob:

hnab packing, Tube packing, reel packing

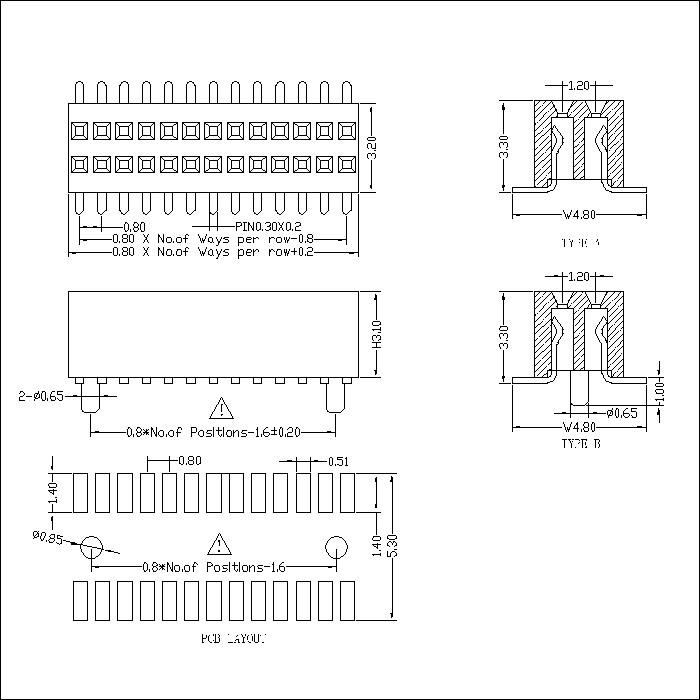

0.80mm suab, ob kab SMT connector

Khoom Paub meej:

1.No.of Contacts: 02 txog 100.

2. Hu rau Plating:

G0: Kub flash S0: Xaiv

G1:3U" Kub S1: Xaiv 3u"

G2:5u" Kub S2: Xaiv 5u"

G3:10u" Kub S3: Xaiv 10u"

G4:15u" Kub S4: Xaiv 15u"

G5:30u" Kub S5: Xaiv 30u"

3.Connector Hom: Ob chav kab.

4.Plastic High: 3.10mm (Lwm qhov ntau thiab tsawg tuaj yeem xaiv).

5.Insulator Khoom: PA6T / LCP / PA9T.

6.Packing: Tais / Hnab / Tube / Tube +CAP / Daim kab xev& Reel / Daim kab xev& Reel+CAP.

7.Nrog nrhiav pegs xaiv: Hom A tsis muaj pegs / Hom B nrog pegs.

SPECIFICATION
Kev ntsuas tam sim no: 0.75Amp

Rwb thaiv tsev Resistance: 1000M ohms min

Tiv tauj Resistance: 20M ohms max

Dielectric Withstanding: AC500V

Kev khiav hauj lwm kub: -65 ° C mus rau 125 ° C

Khoom siv: tooj dag

Insulator: PA6T UL 94V-0 Dub

Nrhiav zoo tagnrho Dual Row SMT hom Connector Chaw tsim tshuaj paus& tus neeg muag khoom? Peb muaj kev xaiv dav ntawm tus nqi khoom los pab koj kom muaj tswv yim. Tag nrho cov 0.8Mm Poj Niam Header SMT Connector yog zoo guaranteed. Peb yog Tuam Tshoj Keeb Kwm Hoobkas ntawm 0.80mm Pitch Niam Lub Rooj Txuas. Yog tias koj muaj lus nug, thov koj xav tiv tauj peb.

Yam khoom: Poj niam Pin Headers> 0.8mm Poj niam Pin Header
