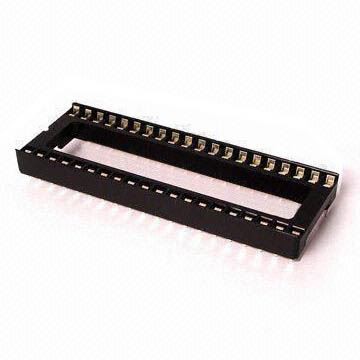

2.54mm Ncaj DIP Dual-in-line Socket

Yam khoom

Qauv No.: MIFES01-XXXX Hom Lub Npe: ANTENK qhov chaw ntawm lub hauv paus chiv keeb: Tuam TshojInterface hom: Ac/DcHousing: PlasticPin: BrassPoles: Lwm yam Daim ntawv thov: Lwm yamCertification: Lwm yamGender: Poj niamMaterial: BrassSupport Card Number: Lwm yam kev khiav hauj lwm zaus: High FrequencyClassification: Lwm yam

Muaj peev xwm muab khoom & Cov ntaub ntawv ntxiv

Ntim: hnab packing, Tube packing, reel packingProductivity: 2000K / hli Kev thauj mus los: Dej hiav txwv, Cua, ExpressPlace ntawm lub hauv paus chiv keeb: Tuam TshojSupply muaj peev xwm: 2000K / hliCertificate: ISO9001HS Code: 8536909000,WeTtern UnionPayment: TSO

Ntim & Xa

Kev Muag Khoom:

Daim / Daim

Hom pob:

hnab packing, Tube packing, reel packing

2.54mm Dual-in-line Socket Ncaj DIP (H=1.9 L=4.82) connector

Specifications:

Kev ntsuas tam sim no: 1.0Amp

Tiv tauj Resistance: 10MΩ max

Dielectric zog: Min 1000 V RMS

Mechanical Life: Min 100 cycles

Ua haujlwm kub: -40 degree rau ntxiv rau 105 degree

Lub tes tsho: Brass CuZn36Pb3 (C36000)

Hu rau Clip (4 ntiv tes): BeCu(C17200)

Hu rau Plating: Au or Sn Over Ni

Cov khoom siv hluav taws xob: PPS ntxiv rau 30 feem pua ​​GF UL 94V -0

06p ~ 16P Insulators tsis muaj qhov chaw nruab nrab

36p ~ 50P Insulators nrog nruab nrab ob bar

Specifications:

Kev ntsuas tam sim no: 1.0Amp

Tiv tauj Resistance: 10MΩ max

Dielectric zog: Min 1000 V RMS

Mechanical Life: Min 100 cycles

Mating Pin: ∅{{0}}.45/ ∅0.48/ ∅0.60/ ∅0.64/∅0.47mm

Lub tes tsho: tooj dag

Hu rau Plating: Au or Sn Over Ni

Cov khoom siv hluav taws xob: PPS ntxiv rau 30 feem pua ​​GF UL 94V -0

 Q: Muaj pes tsawg hom khoom koj lub tuam txhab tsim?A: Tam sim no peb muaj ntau tshaj 1, 000 cov khoom. Peb muaj qhov zoo ntawm OEM, tsuas yog muab peb cov khoom tiag lossis koj lub tswv yim uas koj xav tau, peb yuav tsim rau koj.

Q: Thaum twg kuv tuaj yeem tau txais tus nqi?
A: Feem ntau peb hais hauv8teev tom qab peb tau txais koj qhov kev nug.

Q: Koj tus MOQ yog dab tsi?

A: Yog tias peb muaj cov khoom hauv Tshuag, nws yuav tsis muaj MOQ. Yog tias peb xav tau tsim, peb tuaj yeem tham txog MOQ raws li tus neeg siv khoom qhov xwm txheej.

Q: Koj qhov kev pabcuam shipping yog dab tsi?

A: Peb tuaj yeem muab kev pabcuam rau nkoj nkoj, kev sib sau khoom, kev tshaj tawm kev lis kev cai, kev npaj cov ntaub ntawv thauj khoom thiab xa khoom ntau ntawm qhov chaw nres nkoj shipping.

Q: Koj puas tuaj yeem muab kev pabcuam FBA?

A: Yog, peb muaj kev paub zoo hauv kev muab kev pabcuam FBA.

Q: Koj lub sijhawm khoom xa tuaj yog dab tsi?
A: Peb lub sij hawm xa tuaj yog FOB Xiamen. Peb kuj lees txais EXW, CFR, CIF, DDP, DDU thiab lwm yam. Peb yuav muab cov nqi thauj khoom rau koj thiab koj tuaj yeem xaiv qhov uas yooj yim tshaj plaws rau koj.
