Lub ntsiab tseem ceeb thiab cov teeb meem uas yuav tsum tau them sai sai rau thaum xaiv ib qho txuas

Hauv kev sib txuas, cov khoom sib txuas tsuas yog ib feem ntawm tag nrho cov kev sib txuas, thiab qee zaum lawv tsis quav ntsej. Txawm li cas los xij, thaum tsim thiab siv cov kev sib txuas ntawm kev sib txuas ceev ceev, kev kuaj pom muaj qhov nrawm nrawm ntawm txoj kev teeb liab yog qhov tseem ceeb heev. Yuav kom ua tiav txoj hauv kev Z-zoo tshaj plaws, cov kws tsim hluav taws xob yuav tsum muaj kev nkag siab txog cov teeb meem kev ua haujlwm uas cuam tshuam rau cov teeb meem ntawm txoj kev, xws li: lamination, kam rau ua, tsim los ntawm lub qhov, kab dav, plating, thiab tooj liab etching. Cov npe tsim qauv no muaj xws li cov khoom sib txuas, yog li kev xaiv cov khoom sib txuas hauv kev sib txuas kuj tseem xav tau. Xaiv qhov raug txuas yuav tsum muab 4 yam tseem ceeb hauv qab no;

1. Cov khoom siv txuas tuaj yeem txuas nrog PCB.

2. Cov khoom sib txuas tuaj yeem txhim kho kev sib txuas nrog cov kab ke.

3. Cov khoom sib txuas yuav tsum sib phim nrog impedance ntawm lub hom phiaj bandwidth.

4. Cov khoom sib txuas yuav tsum muaj qhov tso tawm qis dua ntawm lub hom phiaj bandwidth.

Peb paub tias tom qab xyoo ntawm txoj kev loj hlob, cov khoom txuas tau muab faib ua ntau hom. Vim yog tsim thiab tsim khoom, hom terminals, qhov ntev ntawm cov teeb liab sab hauv, thiab kev siv cov khoom sib txawv, koj yuav tsum nug tus neeg muag khoom txuas thaum xaiv cov khoom sib txuas. Txhawm rau txiav txim siab seb nws puas ua tau raws li peb cov kev xaiv, xws li cov ntsiab lus hauv qab no 7 teeb meem;

1. Kuv puas xav kom cov pins txuas kom phim?

2. Yuav ua li cas txiav tawm lwm tus pins ntawm lub connector?

3. Puas muaj cov pob zeb hauv cov khoom txuas uas kuv xaiv?

4. Cov khoom siv ntawm lub connector puas tau dhau daim ntawv pov thawj tiv thaiv ib puag ncig?

5. Puas yog cov ntaub ntawv ntsig txog cov khoom sib txuas ntsuas qhov tseeb?

6. Dab tsi yog hom davhlau ya nyob twg siv rau kev ua cim ntawm cov khoom txuas?

7. Dab tsi layout siv connector nyob rau hauv cov ntaub ntawv muab?

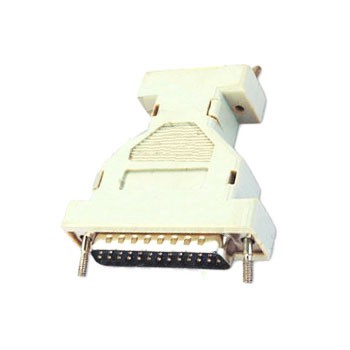

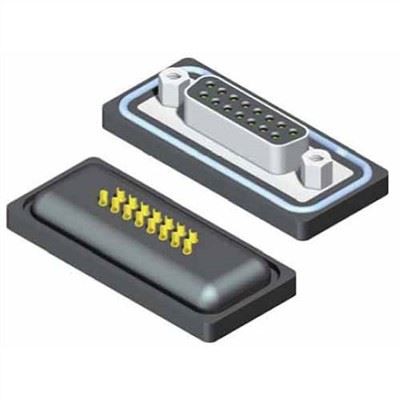

Raws li cov khoom lag luam zoo sib xws, koj yuav tsum muaj peev xwm teb cov lus nug no rau txhua tus neeg siv khoom, muab cov ntaub ntawv ntsuas tseeb ntsig txog hauv kev sib txuas, thiab muab cov neeg siv khoom tsim kev cuam tshuam kev soj ntsuam ntawm kev siv cov khoom sib txuas. Shenzhen Antaike Electronic Technology Co., Ltd. yog cov kws tshaj lij kev sib txuas cov chaw tsim khoom sib koom ua ke R& D, ntau lawm, muag thiab kev pabcuam ntawm cov khoom sib txuas. Cov khoom sib txuas uas tsim muaj xws li: tus pin header connectors, poj niam header connectors, thiab yooj yim nyuj connectors, Horn connector, D-SUB connector, RJ45 connector, FPC connector, USB connector, thiab lwm yam. tuaj yeem ua tau raws li qhov xav tau ntawm ntau yam khoom siv high-end.
