SCSI PCB Connector

Yam khoom

Qauv No.: HPCNR-F68XXX

Hom Lub Npe: ANTENK

qhov chaw ntawm keeb kwm: Suav teb

Kev khiav hauj lwm zaus: High zaus

Terminal Structure: Terminal Raws li tus hwm

Lub tsev: Yas

Lub hwj chim: 1-400

Impedance: 85-100 Ohms

Mated Height: Lwm yam

Tub los ntxhais: Lwm yam

Daim ntawv thov: tub rog

Ntawv pov thawj: Lwm yam

Loj: 1.27mm

Hom interface: AC / DC

Kev them nyiaj yug daim npav naj npawb: Lwm yam

Terminal Khoom: Copper Alloy

Muaj peev xwm muab khoom& Cov ntaub ntawv ntxiv

Ntim: hnab ntim, Tube packing, reel packing

Productivity: 2000K / hli

Kev thauj mus los: Dej hiav txwv, Huab cua, Express

Qhov chaw ntawm Keeb Kwm: Suav teb

Muaj peev xwm muab khoom: 2000K / hli

Daim ntawv pov thawj: ISO9001

HS Code: 8536909000

Ntim& Kev xa khoom

Kev Muag Khoom:

Daim / Daim

Hom pob:

hnab packing, Tube packing, reel packing

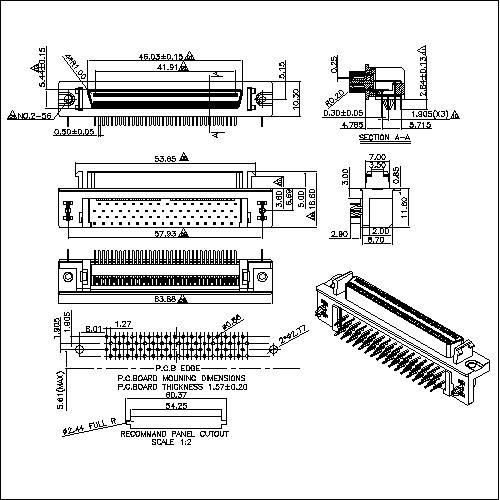

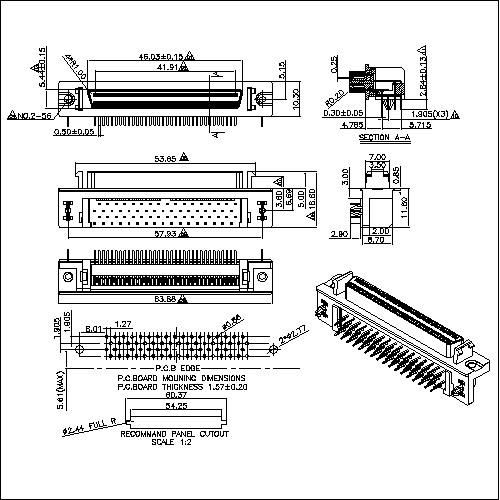

1.27mm Series 68P Receptacle Headers Right-Angle Mount Ribbon Hom

Specifications:

1. Cov yam ntxwv ntawm hluav taws xob:

1.1 Hu rau tus nqi tam sim no: 1AMP

1.2 Rwb thaiv tsev Resisitance: 500MΩ Yam tsawg kawg nkaus

1.3 Tiv tauj Resistance: 25mΩ Qhov siab tshaj plaws

1.4 Dielectric Voltage: 500V AC Ib feeb

2. Khoom siv:

2.1 Insulator:PBT+30%G/F

2.2 Hu rau: C5191-H

2.3 Board Lock: tooj dag

2.4 Bracket: Zinc Alloy

3. Ua tiav:

3.1 Bracket: Nickel Plated

3.2 Sib cuag: Kub Plated Ntawm Chaw Tiv Thaiv, Tin Plated Ntawm Soldering Kawg, Nickel Hauv Plating

4. Ib puag ncig:

Ua haujlwm kub: -55 ° C rau +125 ° C

Nrhiav zoo tagnrho 1.27mm Pitch 68Pin Receptacle Connector Chaw tsim tshuaj paus& tus neeg muag khoom? Peb muaj kev xaiv dav ntawm tus nqi khoom los pab koj kom muaj tswv yim. Tag nrho cov 1.27mm 68P Mount Ribbon Hom Connector yog zoo guaranteed. Peb yog Tuam Tshoj Keeb Kwm Hoobkas ntawm 1.27mm Txoj Cai Mount Ribbon Headers. Yog tias koj muaj lus nug, thov koj xav tiv tauj peb.

Yam khoom: SCSI Connectors> SCSI-90° DIP Section
