1.27 Board To Board Txiv neej Plug Connector BB1.27

Yam khoom

Model No.: BB1.27-MXXXXXBX05  Brand: ANTENK

Muaj peev xwm muab cov ntaub ntawv ntxiv

Ntim: hnab packing, Tube packing, reel packingProductivity: 100000K/hli Kev thauj mus los: Dej hiav txwv, Cua Chaw Keeb Kwm: Tuam Tshoj Muaj peev xwm muab khoom: 100000K / hli Daim ntawv pov thawj: ISO9001HS Code: 8536909000Type: CADF, UnionPayment, Kev Them Nyiaj: FOB Sijhawm: 10 Hnub

Ntim Kev xa khoom

Kev Muag Khoom:

Hnab / Hnab

Hom pob:

hnab packing, Tube packing, reel packing

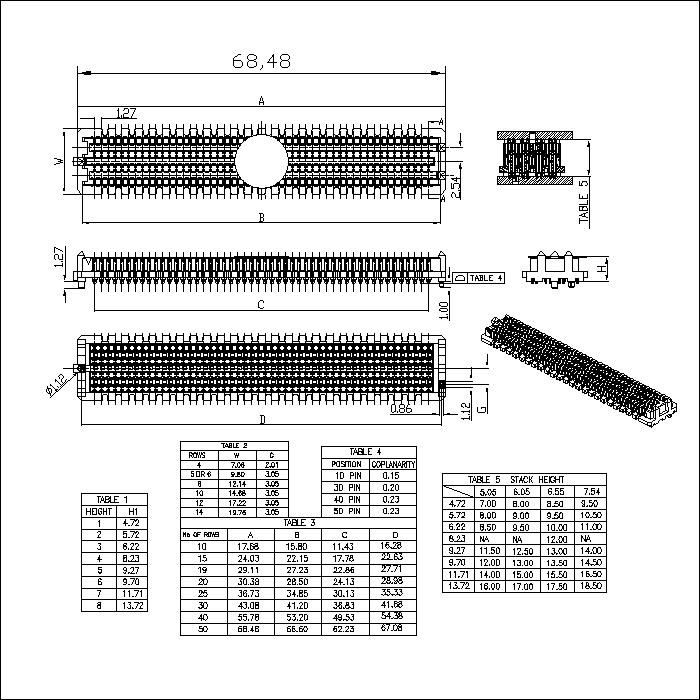

Shenzhen Antenk Electronics Co., Ltd. launched a 1.27 Board To Board Txiv neej Plug Connector

BB1.27-MXXXXBX05

Specifications:

Kev ntsuas tam sim no: 1A Max.

Kev ntsuas hluav taws xob: 240V AC

Kev khiav hauj lwm kub: -55 degree ntxiv rau 125 degree

Kev khiav hauj lwm Humidity: 90 feem pua ​​​​rau 95 feem pua

Qhov hluav taws xob: 700V AC / min

BB0.4M-1.5XXX03

1). Peb nyob rau hauv Shenzhen, lub hometown ntawm suav hluav taws xob.Peb tuaj yeem muab koj cov khoom sib tw tshaj plaws.

2). Peb muaj sampling ntau tshaj 8000 hom khoom rau peb kev cai nyob rau hauv 14 xyoo dhau los.

3) Muaj ib lub pas dej ua ke ntawm kev paub dhau los, kev ua haujlwm zoo ntawm cov txuj ci sab saum toj, thiab siv cov cuab yeej siv hluav taws xob siab tshaj plaws, kev lees paub tag nrho ntawm cov khoom zoo.

4). Peb cov neeg siv khoom nyob thoob plaws ntiaj teb suav nrog Tuam Tshoj, Singapore, Malaysia, Indonesia, Kauslim Teb, Is Nrias teb, Tebchaws Asmeskas thiab ntau lub tebchaws hauv Tebchaws Europe thiab Africa thiab South America.

specifications

1.Materlal:

1-1.Moulded feem: LCP resin (ul94-0).

1-2.Kev sib cuag thiab ncej: tooj liab alloy.

2. Kev kho deg:

2-1.Terminal feem; puag; Ni plating nto;

Au plating (tshwj tsis yog cov lus qhia davhlau ya nyob twg); nthuav tawm cov nickel feem.

2-2.Metal Clips: puag; Ni plating nto; Au flash plating

(tshwj tsis yog cov lus qhia davhlau ya nyob twg) lossis lub hauv paus; Ni plating nto;

Sn flash plating (tshwj tsis yog cov lus qhia davhlau ya nyob twg)

3. Yam ntxwv:

3-1.Rated voltage: 60V AC / DC

3-2.Rated curren:0.3A/contact(Max.5A ntawm tag nrho kev sib cuag)

3.3.Insulation resistance:Min.1000MΩ(initial)

3.4.Breakdown voltage: 150V AC fou 1 min.

3-5.Saltwater spray kuj (header thiab socket mated: 24 teev,

insulact resistance max.90mΩ.

3-6Contact resistance:Max.90mΩ.

3-7.Ambient kub: -55 degree ntxiv rau 85 degree.

3-8.Storage kub: -55 degree ntxiv rau 88 degree (khoom xwb);

-40 degree ntxiv rau 50 degree (emboss ntim).

3-9.Composite insertion force:Max.0.918N/contacts X contacts(initial).

3-10.Composite tshem tawm quab yuam:Min.0.165N/hu rau X hu.

3-11.Post tuav quab yuam:Min.0.49N/contacts.

3-12.Insertion thiab tshem tawm lub neej: 50 zaug.

Specifications:

Kev ntsuas hluav taws xob: 50V AC (rms) / DC

Kev ntsuas tam sim no: 0.5A AC(rms) / DC

Tiv tauj Resistance: 50milli ohm Max.

Rwb thaiv tsev Resistance: 100M ohm min

Dlelectric Nrog Voltage: 200V AC rms

Kev khiav hauj lwm kub: -30 degree ntxiv rau 80 degree

Cov khoom

Housing: Kub Kub Yas UL94V-0

Terminal: tooj liab alloy

Khoom siv: PA9T

Hu rau: phosphor Bronae, Kub Plating;

BB1.27-MXXXXBX05

Q: Koj puas tuaj yeem ua peb tus kheej ntim khoom?

A: Yog, koj tsuas yog muab lub pob tsim thiab peb yuav tsim qhov koj xav tau. Peb kuj muaj tus kws tshaj lij tsim qauv tuaj yeem pab koj ua tus tsim ntim.

 Q: Muaj pes tsawg hom khoom koj lub tuam txhab tsim?A: Tam sim no peb muaj ntau tshaj 1, 000 khoom. Peb muaj qhov zoo ntawm OEM, tsuas yog muab peb cov khoom tiag lossis koj lub tswv yim uas koj xav tau, peb yuav tsim khoom rau koj.

Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.

Q: What's your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation.

 Q: Koj lub sijhawm xa khoom ntev npaum li cas?A: Lub sijhawm xa khoom dav dav yog 30-45 hnub tom qab tau txais koj daim ntawv lees paub. Anther, yog tias peb muaj cov khoom hauv Tshuag, nws tsuas yog siv 1-2 hnub. Q: Koj puas muab cov qauv? Puas yog dawb?A: Yog tias tus qauv qis qis, peb yuav muab cov qauv dawb nrog cov khoom thauj. Tab sis rau qee qhov kev kuaj tus nqi siab, peb yuav tsum tau sau cov nqi coj mus kuaj.
