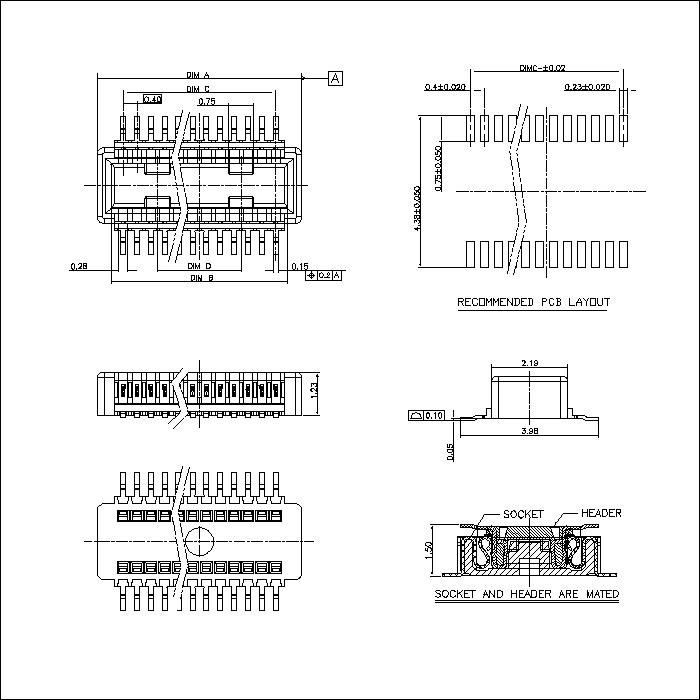

{{0}}.4mm Board To Board Txiv neej Connector Mating Qhov siab =1.5mm BB0.4M

Product Description

Product AttributesSupply Ability Cov Ntaub Ntawv Ntxiv Ntim Kev Xa Khoom<>

Txheej txheem cej luam

Yam khoom

Qauv No.: BB0.4M-1.5XXX03 Hom Lub Npe: ANTENKInterface Hom: Ac/DcHousing: PlasticPin: BrassPoles: Lwm Daim Ntawv Thov: Lwm Cov Ntawv Pov Thawj: Lwm Tus Poj Niam: Txiv Neej Khoom: BrassSupport Card Number: OtherOperating Frequency: High FrequencyClassification: Lwm yam

Muaj peev xwm muab cov ntaub ntawv ntxiv

Ntim: hnab packing, Tube packing, reel packingProductivity: 100000K/hli Kev thauj mus los: Dej hiav txwv, Cua Chaw Keeb Kwm: Tuam Tshoj Muaj peev xwm muab khoom: 100000K / hli Daim ntawv pov thawj: ISO9001HS Code: 8536909000Type: FCC, UnionPayment, Kev them nyiaj yug:

Ntim Kev xa khoom

Kev Muag Khoom:

Hnab / Hnab

Hom pob:

hnab packing, Tube packing, reel packing

Shenzhen Antenk Electronics Co., Ltd. launched ib tug 0.4mm Board rau Board connector, txiv neej, mating Height =1.5mm electronic khoom

BB0.4M-1.5XXX03

1). Peb nyob rau hauv Shenzhen, lub hometown ntawm suav hluav taws xob.Peb tuaj yeem muab koj cov khoom sib tw tshaj plaws.

2). Peb muaj sampling ntau tshaj 8000 hom khoom rau peb kev cai nyob rau hauv 14 xyoo dhau los.

3) Muaj ib lub pas dej ua ke ntawm kev paub dhau los, kev ua haujlwm zoo ntawm cov txuj ci sab saum toj, thiab siv cov cuab yeej siv hluav taws xob siab tshaj plaws, kev lees paub tag nrho ntawm cov khoom zoo.

4). Peb cov neeg siv khoom nyob thoob plaws ntiaj teb suav nrog Tuam Tshoj, Singapore, Malaysia, Indonesia, Kauslim Teb, Is Nrias teb, Tebchaws Asmeskas thiab ntau lub tebchaws hauv Tebchaws Europe thiab Africa thiab South America.

specifications

1.Materlal:

1-1.Moulded feem: LCP resin (ul94-0).

1-2.Kev sib cuag thiab ncej: tooj liab alloy.

2. Kev kho deg:

2-1.Terminal feem; puag; Ni plating nto;

Au plating (tshwj tsis yog cov lus qhia davhlau ya nyob twg); nthuav tawm cov nickel feem.

2-2.Metal Clips: puag; Ni plating nto; Au flash plating

(tshwj tsis yog cov lus qhia davhlau ya nyob twg) lossis lub hauv paus; Ni plating nto;

Sn flash plating (tshwj tsis yog cov lus qhia davhlau ya nyob twg)

3. Yam ntxwv:

3-1.Rated voltage: 60V AC / DC

3-2.Rated curren:0.3A/contact(Max.5A ntawm tag nrho kev sib cuag)

3.3.Insulation resistance:Min.1000MΩ(initial)

3.4.Breakdown voltage: 150V AC fou 1 min.

3-5.Saltwater spray kuj (header thiab socket mated: 24 teev,

insulact resistance max.90mΩ.

3-6Contact resistance:Max.90mΩ.

3-7.Ambient kub: -55 degree ntxiv rau 85 degree.

3-8.Storage kub: -55 degree ntxiv rau 88 degree (khoom xwb);

-40 degree ntxiv rau 50 degree (emboss ntim).

3-9.Composite insertion force:Max.0.918N/contacts X contacts(initial).

3-10.Composite tshem tawm quab yuam:Min.0.165N/hu rau X hu.

3-11.Post tuav quab yuam:Min.0.49N/contacts.

3-12.Insertion thiab tshem tawm lub neej: 50 zaug.

Specifications:

Kev ntsuas hluav taws xob: 50V AC (rms) / DC

Kev ntsuas tam sim no: 0.5A AC(rms) / DC

Tiv tauj Resistance: 50milli ohm Max.

Rwb thaiv tsev Resistance: 100M ohm min

Dlelectric Nrog Voltage: 200V AC rms

Kev khiav hauj lwm kub: -30 degree ntxiv rau 80 degree

Cov khoom

Housing: Kub Kub Yas UL94V-0

Terminal: tooj liab alloy

Khoom siv: PA9T

Hu rau: phosphor Bronae, Kub Plating;
