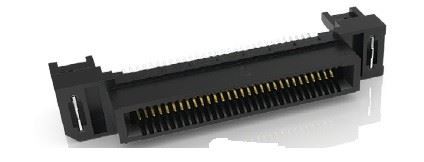

Vertical SMD Edge Card PCI Socket BB0.8-H

Yam khoom

Model No.: BB0.8-HXXX04  Brand: Antenkplace of origin: Chinaapplication: Power, Pcb

Muaj peev xwm muab cov ntaub ntawv ntxiv

Ntim: hnab packing, Tube packing, reel packingProductivity: 2000K / hli Kev thauj mus los: Dej hiav txwv, Cua, ExpressPlace ntawm lub hauv paus chiv keeb: Tuam TshojSupply muaj peev xwm: 2000K / hli Daim ntawv pov thawj: ISO9001HS Code: 8536909000WebType / UnionPay, LPC , CIF, EXW

Ntim Kev xa khoom

Kev Muag Khoom:

Daim / Daim

Hom pob:

hnab packing, Tube packing, reel packing

0.8mm Vertical SMD Edge Card Qhov (socket).

Specifications:

1.Tam sim no Rating:1.0A.

2. Voltage ntsuam xyuas 30V AC / DC.

3.Qhov voltage; 500V AC / feeb.

4. Yam ntxwv:

5.Insulation Resistance: Min. 1000M ohms (pib)

6. Dej ntsev tsuag tsis kam (header thiab socket

mated: 24 hours,insulact resistance max.90m Ω

7.Contact Resistance: Max. 900mΩ

8.Ambient kub: -55 degree ntxiv rau 85 degree

9. Cia kub: -55 degree ntxiv rau 88 degree (khoom xwb);

-40 degree ntxiv rau 50 degree (emboss ntim).

 BB0.8-HXXX04

Specifications:

Kev ntsuas tam sim no: 0.5A

Kev ntsuas hluav taws xob: 50V AC / DC

Tiv tauj Resistance: 50milliohm Max

Rwb thaiv tsev Resistance: 100Megohm Min

Ua haujlwm kub: -20 degree rau ntxiv 105 degree

Khoom siv tsev: PA9T ntxiv rau 30 feem pua ​​GF (UL94V-0)

Khoom siv: Phosphor Btonze

Hu rau plating: Au los yog Sn tshaj Ni

FAQ

1, Can we get some samples? Any charges?

Yes, free existing labels, you need to pay shipping cost.

 2. How can we get a quote?

Contact us with specification: such as material, design, size, shape, color, quantity,  surface finishing, etc.

 3. Can you help with the design?Yes, Simply design free, special design need to pay.                                                                             4. What's the trade term and payment term?Amount less than 1000, 100 percent  paid before production, more than 1000 can be negotiated!

T/T, Western Union, PAYPAL etc.

5.  May I have new sample made with my design for confirmation?

Yes. Sample charge means set up charge for production line, little quantity  we suggest that straight for production. Large quantity we suggest that sample   first, and sample fee can be refund.

QUALITY CONTROL

Peb muajQC person stay on the production lines do to the inspection.All khooms yuav tsum tau kuaj xyuas ua ntej xa khoom.we ua inline soj ntsuam thiab zaum kawg tshuaj xyuas.

1.Txhua cov khoom siv raw tau kuaj xyuas thaum nws tuaj txog peb lub Hoobkas.

2.Txhua daim thiab lub logo thiab tag nrho cov ntsiab lus tshawb xyuas thaum lub sijhawm tsim khoom.

3.Txhua cov ntaub ntawv ntim tau kuaj xyuas thaum tsim khoom.

4.Txhua qhov kev tsim khoom zoo thiab ntim khoom tau kuaj xyuas zaum kawg tom qab ua tiav.

Q: Koj puas yog tuam txhab lag luam lossis chaw tsim khoom?A: Peb yog cov chaw tsim khoom tshwj xeeb hauv orthopedic thiab cov khoom ua si. Thiab peb pauv peb cov khoom nrog peb cov neeg siv khoom ncaj qha.

Q: Koj puas tuaj yeem ua OEM thiab ODM?

A: Yog, OEM thiab ODM yog ob qho tib si txais. Cov khoom siv, xim, style tuaj yeem hloov kho, qhov pib kom muaj nuj nqis peb yuav qhia tom qab peb tham.

Q: Peb puas tuaj yeem siv peb lub logo?

A: Yog lawm, peb tuaj yeem luam koj tus kheej lub logo raws li koj qhov kev thov.

Q: Koj muaj pes tsawg lub ntim?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and
