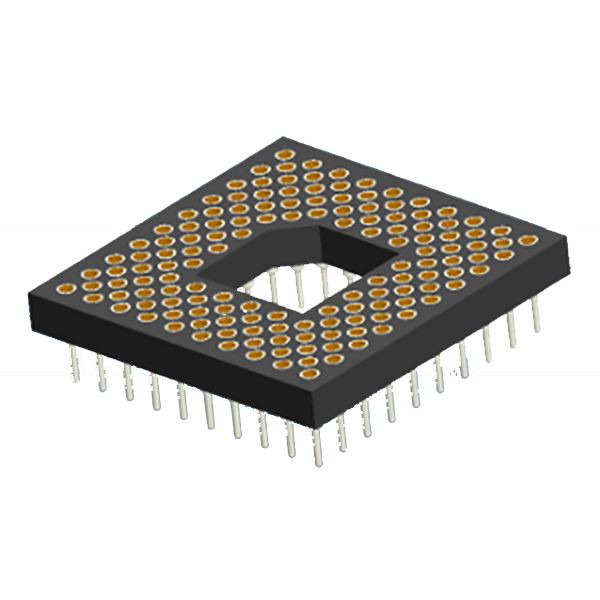

Machined PGA Pin Grid Array Sockets 2.54x1.27mm

Yam khoom

Qauv No.: PGA02-XXXXXX Hom: ANTENK qhov chaw ntawm lub hauv paus chiv keeb: Tuam TshojInterface hom: Ac/DcHousing: PlasticPin: BrassPoles: Lwm yam daim ntawv thov: Lwm yamCertification: Lwm yamGender: txiv neej Khoom siv: BrassSupport Card Number: Lwm yam kev khiav hauj lwm zaus: Lwm yam Classification: Lwm yam

Muaj peev xwm muab khoom & Cov ntaub ntawv ntxiv

Ntim: hnab packing, Tube packing, reel packingProductivity: 2000K / hli Kev thauj mus los: Dej hiav txwv, Cua, ExpressPlace ntawm lub hauv paus chiv keeb: Tuam TshojSupply muaj peev xwm: 2000K / hliCertificate: ISO9001HS Code: 8536909000,WeTtern UnionPayment: TSO , FCA

Ntim & Xa

Kev Muag Khoom:

Daim / Daim

Hom pob:

hnab packing, Tube packing, reel packing

Machined PGA Pin Grid Array Sockets 2.54x1.27mm

Specifications:

1. Khoom siv:

Rwb thaiv tsev: PPS UL 94V -0

Pin (Out Sleeve): Brass, Machined CuZn38Pb2

Plating (Tawm Lub Tes Tsho): Tin Plaed: 80U "Ni, 200U" Sn

Kub Plated: 80U"Ni,0.8U"Gold

Plating (Cilp): 80U "Ni, Kub los yog Tin Plated

Cilp ( Hu rau 4 Flnger): Beryllium Copper Thaum tshav kub kub

2. Hluav taws xob:

Kev ntsuas tam sim no: 3Amps / Hu rau Max.

Tiv tauj Resistance: Tsawg dua los yog sib npaug rau 4mΩ / Hu rau

Insuiation Resistance: Ntau dua lossis sib npaug rau 1000MΩ ntawm V=100V

Kev khiav hauj lwm voltage: 60VAC / DC

3. Mechanical:

Qhov nruab nrab Insertion quab yuam nrog steel pin ntawm ∅0.432<>

Qhov nruab nrab tshem tawm quab yuam nrog steel pin ntawm ∅0.432<>

Mechanical Lize Cycle: min 200

Kev khiav hauj lwm kub: -40 degree rau -105 degree

Soldering Kub: ntxiv rau 255 degree

Specifications:

1. Khoom siv:

Rwb thaiv tsev: PPS UL 94V -0

Pin (Out Sleeve): Brass, Machined CuZn38Pb2

Plating (Tawm Lub Tes Tsho): Tin Plaed: 80U "Ni, 200U" Sn

Kub Plated: 80U"Ni,0.8U"Gold

Plating (Cilp): 80U "Ni, Kub los yog Tin Plated

Cilp ( Hu rau 4 Flnger): Beryllium Copper Thaum tshav kub kub

2. Hluav taws xob:

Kev ntsuas tam sim no: 3Amps / Hu rau Max.

Tiv tauj Resistance: Tsawg dua los yog sib npaug rau 4mΩ / Hu rau

Insuiation Resistance: Ntau dua lossis sib npaug rau 1000MΩ ntawm V=100V

Kev khiav hauj lwm voltage: 60VAC / DC

3. Mechanical:

Qhov nruab nrab Insertion quab yuam nrog steel pin ntawm ∅0.432<>

Qhov nruab nrab tshem tawm quab yuam nrog steel pin ntawm ∅0.432<>

Mechanical Lize Cycle: min 200

Kev khiav hauj lwm kub: -40 degree rau -105 degree

Soldering Kub: ntxiv rau 255 degree

Q: Thaum twg kuv tuaj yeem tau txais tus nqi?
A: Feem ntau peb hais hauv8teev tom qab peb tau txais koj qhov kev nug.

Q: Koj tus MOQ yog dab tsi?

A: Yog tias peb muaj cov khoom hauv Tshuag, nws yuav tsis muaj MOQ. Yog tias peb xav tau tsim, peb tuaj yeem tham txog MOQ raws li tus neeg siv khoom qhov xwm txheej.

Q: Koj qhov kev pabcuam shipping yog dab tsi?

A: Peb tuaj yeem muab kev pabcuam rau nkoj nkoj, kev sib sau khoom, kev tshaj tawm kev lis kev cai, kev npaj cov ntaub ntawv thauj khoom thiab xa khoom ntau ntawm qhov chaw nres nkoj shipping.

Q: Koj lub sijhawm khoom xa tuaj yog dab tsi?
A: Peb lub sij hawm xa tuaj yog FOB Xiamen. Peb kuj lees txais EXW, CFR, CIF, DDP, DDU thiab lwm yam. Peb yuav muab cov nqi thauj khoom rau koj thiab koj tuaj yeem xaiv qhov uas yooj yim tshaj plaws rau koj.

A: T / T, Western Union, PayPal thiab lwm yam.Peb lees txais txhua lub sijhawm them nyiaj yooj yim thiab nrawm.

Q: Koj muaj daim ntawv pov thawj twg?

A: CE, FDA thiab ISO13485.

Q: Koj puas muaj kev kuaj thiab kuaj xyuas?

A: Yog lawm, peb tuaj yeem pab kom tau txais daim ntawv tshaj tawm kev xeem rau cov khoom thiab daim ntawv pov thawj ntawm lub Hoobkas.
