1.27mm 50Pin Solder Moulded Ribbon Connector

Yam khoom

Qauv No .: HPCNS-50FM3 Hom: ANTENK qhov chaw ntawm lub hauv paus chiv keeb: ChinaOperating zaus: High FrequencyTerminal Structure: Terminal Nyob rau hauv lub PremiumHousing: PlasticCircuit: 1-400Impedance: 85-100 OhmsMated qhov siab: OtherGender: Lwm yam kev thov: Tub rogCertification: OtherPitch: 1.27mmInterface Hom: Ac/DcSupport Card Number: Lwm yamTerminal khoom: tooj liab Alloy

Muaj peev xwm muab khoom & Cov ntaub ntawv ntxiv

Ntim: hnab packing, Tube packing, reel packingProductivity: 2000K / hli Kev thauj mus los: Dej hiav txwv, Cua, ExpressPlace ntawm lub hauv paus chiv keeb: Tuam TshojSupply muaj peev xwm: 2000K / hliCertificate: ISO9001HS Code: 8536909000Type: FCI, UnionPayment: TSO , FCA

Ntim & Xa

Kev Muag Khoom:

Daim / Daim

Ntim Hom:

hnab packing, Tube packing, reel packing

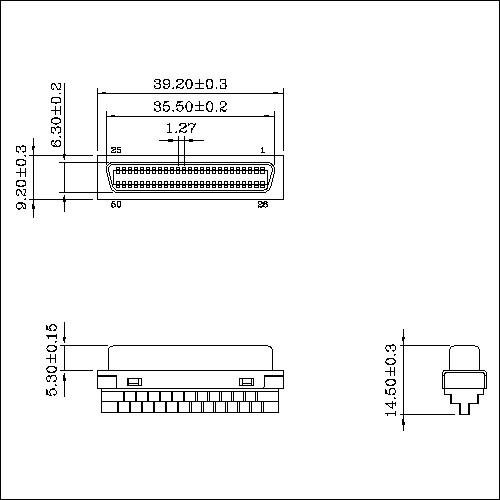

1.27mm Series 50P Cable Receptacle Connector Solder Moulded Ribbon Hom

SPECIFICATIONS:

Khoom siv: (RoHS raws

Tsev Thiab Npog: Yas Thermoplastic mP.BT UL94V-O Dub

Hu rau: Phosphor Bronze Kub

Bracket: Zine Alloy Nickel Plated Tshaj tooj liab

ELECTRICAL CHARACTERISTIS:

Hu rau Qhov Ntsuas Ntsuas: 1 Amp

Dielectric Withstanding Voltage: 500V AC

Insulation Resistance:>500MΩ / min

Tiv tauj Resistance: 35mΩ / MAX

Ua haujlwm kub: -55 degree ~ ntxiv rau 105 degree

Specifications:

1. Cov yam ntxwv ntawm hluav taws xob:

1.1 Hu rau tam sim no tus nqi: 1A

1.2 Rwb thaiv tsev tsis kam: 500mΩ Min

1.3 Tiv tauj tsis kam: 25mΩ Max

1.4 Dielectric Voltage: 500V AC Ib feeb

2. Khoom siv:

2.1 Insulator: PBT ntxiv rau 30 feem pua ​​G/F

2.2 Hu rau: Copper Alloy T=0.30

2.3 Board Lock: Copper Alloy T=0.50

2.4 Bracket: ZINC alloy

3. Tiav

3.1 Plhaub: Nickel Plated

3.2 Sib cuag: Kub Plating ntawm thaj chaw tiv tauj, Tin Plated ntawm Soldering kawg, Nickel hauv qab-plating.

3.3 Board Lock: Nickel Plated

Ua haujlwm kub: -55 degree Mus rau 125 degree

4. Ib puag ncig

Ua haujlwm kub: -55 degree rau ntxiv rau 125 degree

Q: Koj puas tuaj yeem ua peb tus kheej ntim khoom?

A: Yog, koj tsuas yog muab lub pob tsim thiab peb yuav tsim qhov koj xav tau. Peb kuj muaj tus kws tshaj lij tsim qauv tuaj yeem pab koj ua tus tsim ntim.

 Q: Muaj pes tsawg hom khoom koj lub tuam txhab tsim?A: Tam sim no peb muaj ntau tshaj 1, 000 khoom. Peb muaj qhov zoo ntawm OEM, tsuas yog muab peb cov khoom tiag lossis koj lub tswv yim uas koj xav tau, peb yuav tsim khoom rau koj.

Q: Thaum twg kuv tuaj yeem tau txais tus nqi?
A: Feem ntau peb hais hauv8teev tom qab peb tau txais koj qhov kev nug.

Q: Koj tus MOQ yog dab tsi?

A: Yog tias peb muaj cov khoom hauv Tshuag, nws yuav tsis muaj MOQ. Yog tias peb xav tau tsim, peb tuaj yeem tham txog MOQ raws li tus neeg siv khoom qhov xwm txheej.

 Q: Koj lub sijhawm xa khoom ntev npaum li cas?A: Lub sijhawm xa khoom dav dav yog 30-45 hnub tom qab tau txais koj daim ntawv lees paub qhov kev txiav txim. Anther, yog tias peb muaj cov khoom hauv Tshuag, nws tsuas yog siv sijhawm 1-2 hnub.
